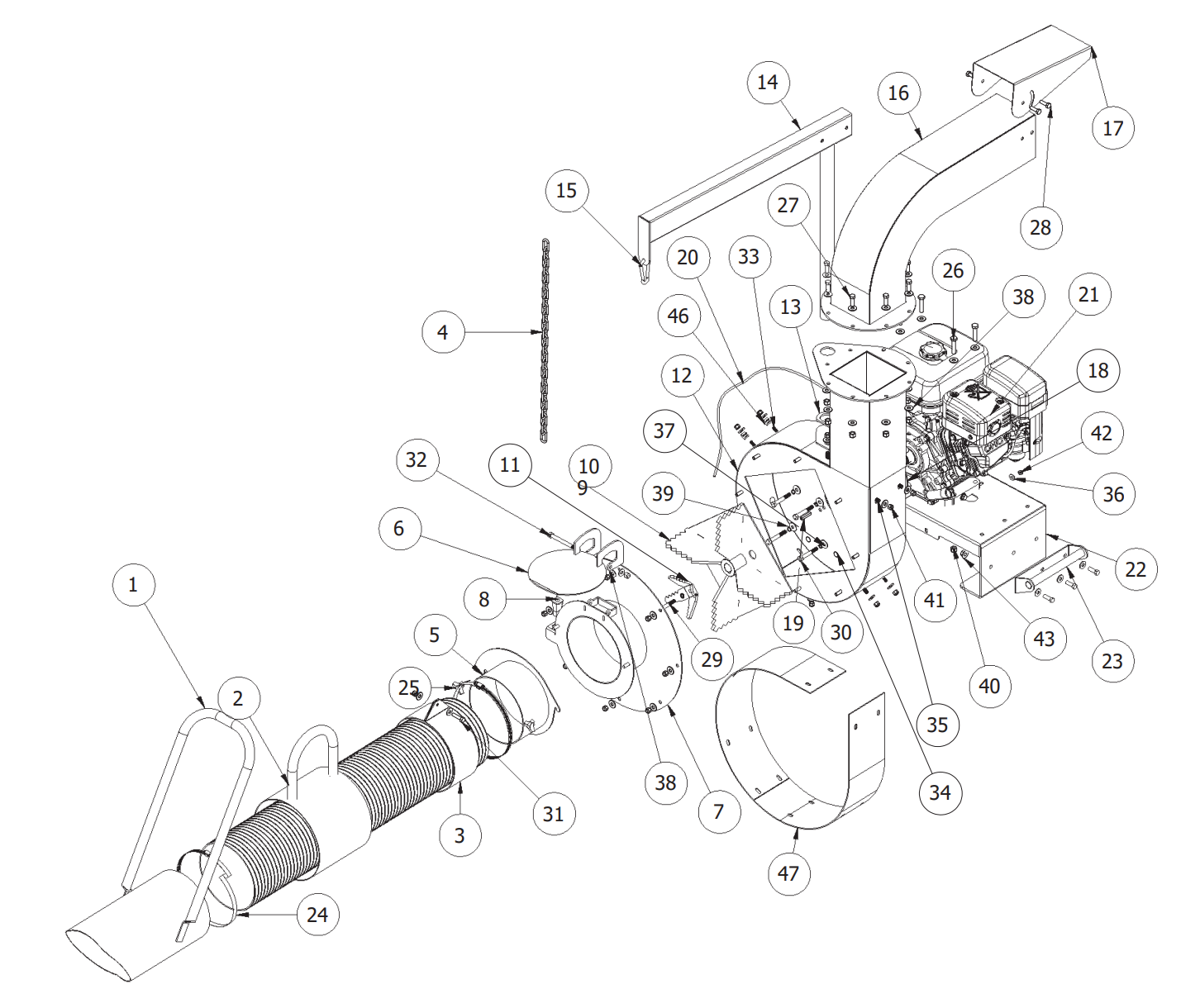

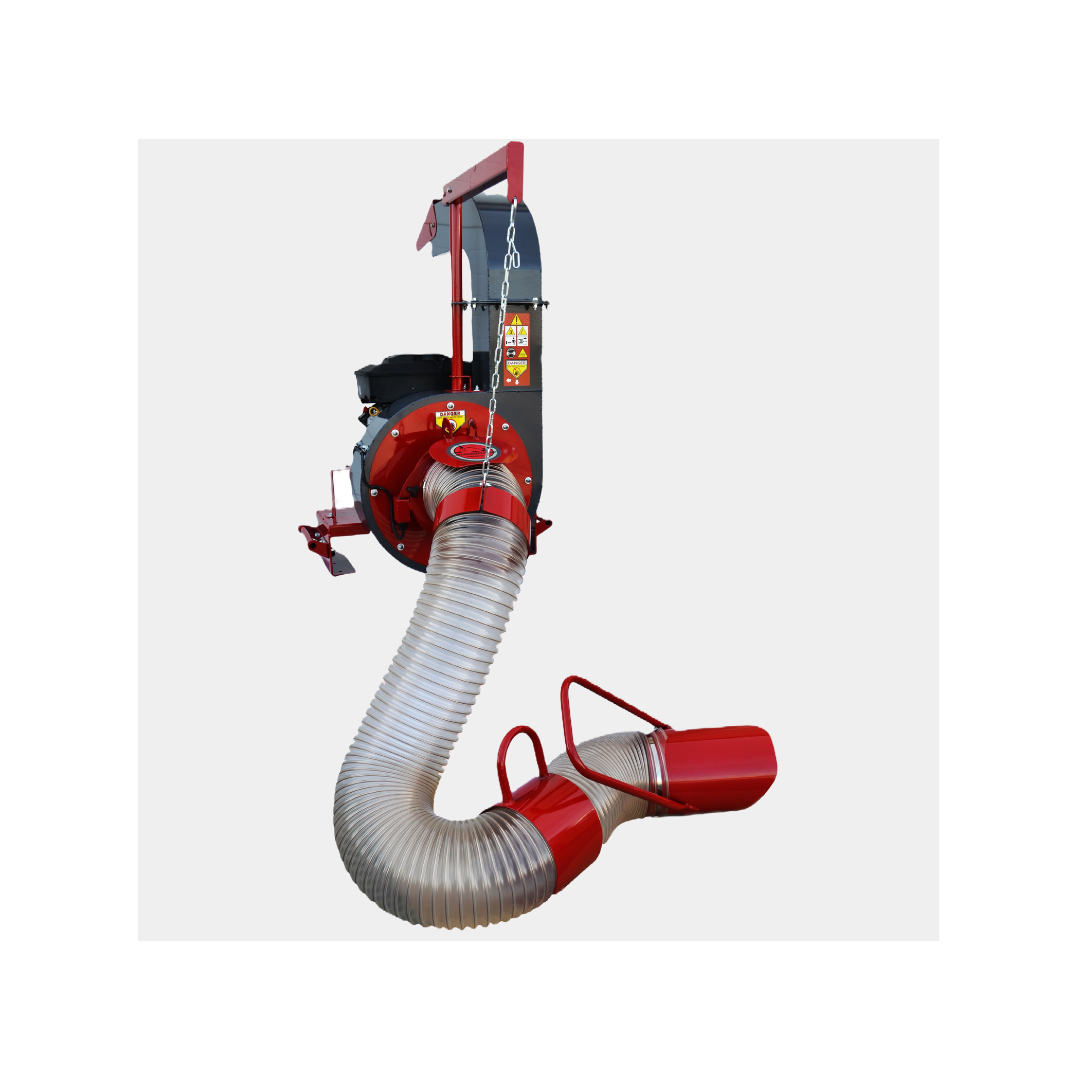

Part Breakdown

Parts List

Locator	Item Picture	Quantity	Part Number	Description	Standard/ Option

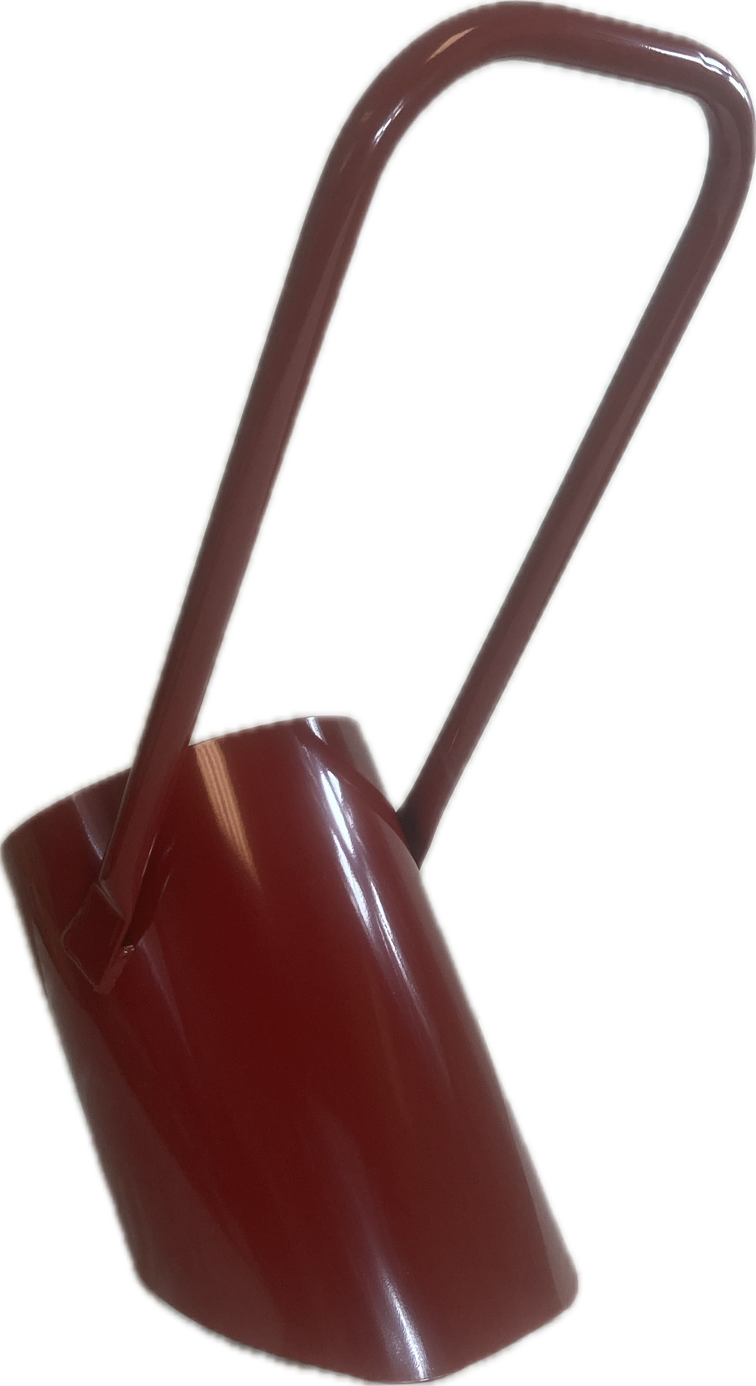

1		1	12467	Nozzle Assy	Standard
2		1	12469	Floating Handle	Standard
3		1	12471	Support Collar	Standard
4		1	12411-02	Chain, Support, 28in	Standard
5		1	12454	Safety Flange, Hose	Standard
6		1	12453	Safety Plate	Standard
7		1	12452	Intake Assy, Housing	Standard
8		1	12370	Switch, Interlock	Standard
9		1	12445-01	Hose, 10in x ~10ft	Standard
10		1	12458	Impeller, Balanced	Standard
Not Shown		11	12441	Bushing, Compression, 18hp only	Standard
11		1	12466	Shark Blade	Standard
12		1	12456	Housing	Standard
13		1	12400	Base, Hanger Arm	Standard
14		1	12403	Hanger Arm Assy	Standard
15		1	05870	Clip, Adjustable Snap	Standard
16		1	12450	Chute Assy	Standard
17		1	12451	Discharge Flap	Standard
18		1	12462	Spacer, Engine/Housing	Standard
19		1	1100-012	Key Stock	Standard
20		1	12472	Harness, Safety Interlock	Standard
21		1	Vanguard 18	Engine	Standard
22		1	12457	Motor Base	Standard
23		2	12455	Handle, Base	Standard
24		2	12446	Bridge Clamp, 10in	Standard
25		2	12407	Knob, Quick Release	Standard
26		4	11149	Bolt, 3/8-16 x 1-3/4	Standard
27		14	11376	Bolt, 3/8-16 x 1	Standard
28		3	11815	Bolt, 5/16-18 x 1	Standard
29		1	12447-1	Bolt, Engine shaft, 7/16, G8	Standard
Not Shown		1	12448	Washer, Split Lock,7/16	Standard
30		4	11395	Bolt, 3/8-16 x 2-1/2	Standard
31		1	11147	Bolt, 5/16-18 x 1-1/4	Standard
32		1	12410	Bolt, 5/16-18 x 4	Standard
33		4	11709	Bolt, Carriage, 5/16-18 x 3/4	Standard
34		3	12408	Bolt, Carriage, 1/4-20 x 1	Standard
35		8	12001	Bolt, Carriage, 5/16-18 x 1	Standard
36		3	11845	Washer, 1/4	Standard
37		4	11155	Washer, 3/8	Standard
38		57	11366	Washer, 5/16	Standard
39		5	11525	Washer, Split Lock, 5/16	Standard
40		18	11150	Nut, Nylon, 3/8	Standard
41		24	11532/11905	Nut, Nylon, 5/16	Standard
42		3	11151	Nut, Nylon, 1/4	Standard
43		6	11150	Nut, Nylon, 3/8	Standard
46		4	11103	Clamp, Strain Relief	Standard
47		12	12463	Liner Set	Standard
Not Shown		1	12478	Muffler Guard	Standard
Not Shown		13	12470	Throttle Assy	Standard
Not Shown		1	12443-01	Battery Cable, Red	Standard
Not Shown		1	12444-01	Battery Cable Black	Standard
Not Shown		1	12460	Bracket, Battery	Standard
Not Shown		1	12426	Cord Grip	Standard
Not Shown		1	12448	Washer, Lock, 7/16, Shaft bolt	Standard

1. Taper Bushing is used only on the 18hp impeller. It is recommended that this item is replaced when the impeller is replaced. ↩︎
2. Housing liner set is replaceable to protect the housing. This item should be inspected at the time an impeller is being replaced. ↩︎
3. Throttle assembly may be replaced with different version. ↩︎
