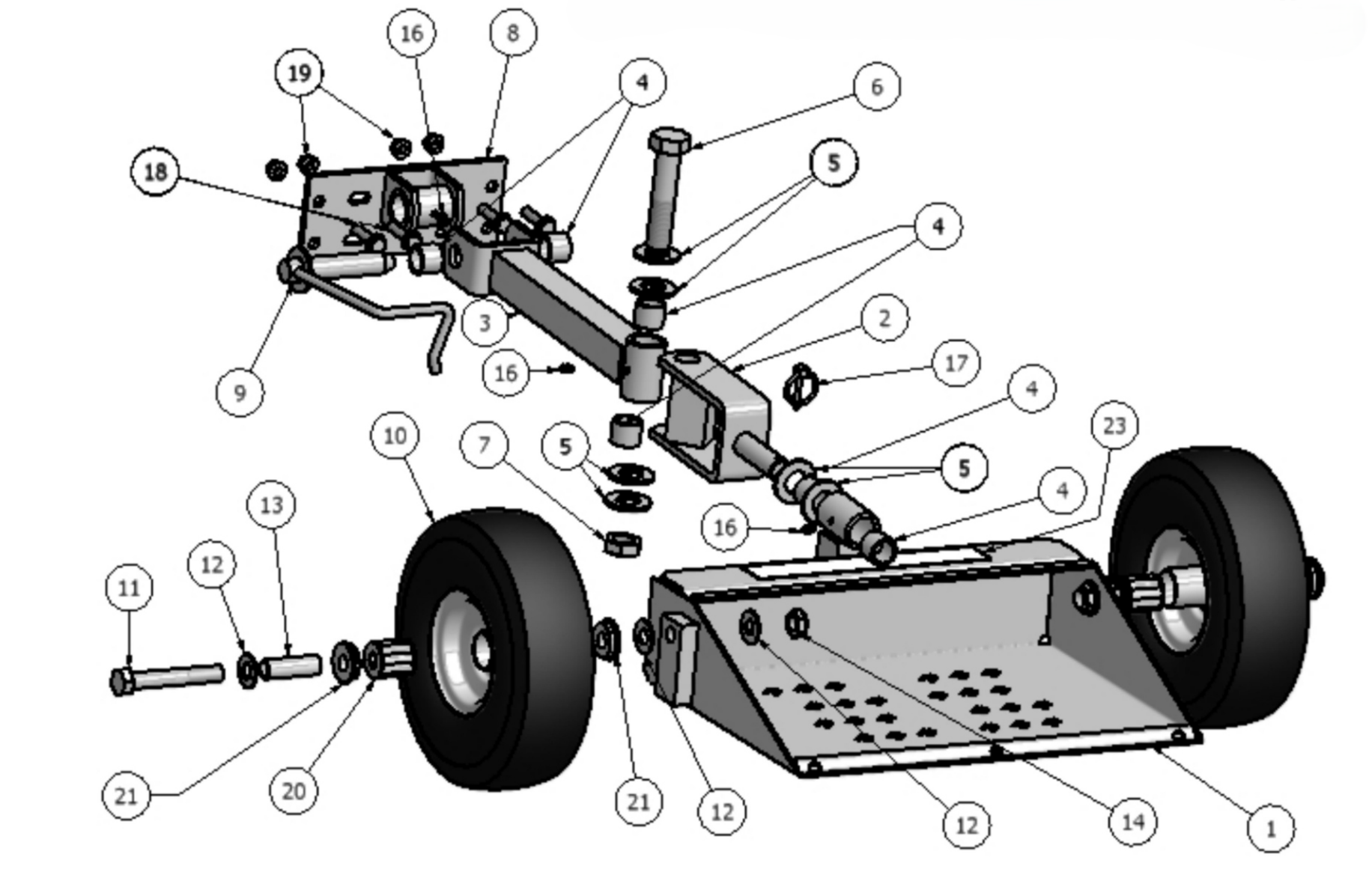

Part Breakdown

Parts List

Locator	Part Picture	Quantity	Part Number	Description	Standard/ Option
1A		1	1167R/1049R	Deck Pan Assy, Red	Standard
1B		1	1167B/1049B	Deck Pan Assy, Black	Standard
2A		1	1029R	Yoke Linkage, Red	Standard
2B		1	1029B	Yoke Linkage, Black	Standard
3A		1	1022R	Forearm Assy, Red	Standard
3B		1	1022B	Forearm Assy, Black	Standard
4		6	1018	Bushing, Iron	Standard
5		6	1023	Washer, Large	Standard
6		1	1013	Bolt, Special Linkage Pin	Standard
7		1	1031	Nut, Linkage, Locking	Standard
8A		1	1038-1R	Universal Mount, Red	Standard
8B		1	1038-1B	Universal Mount, Black	Standard
8C		1	1038-1R-FR	Ferris Mount, Red	Option
8D		1		TTHP Exmark Mount, Red	Option

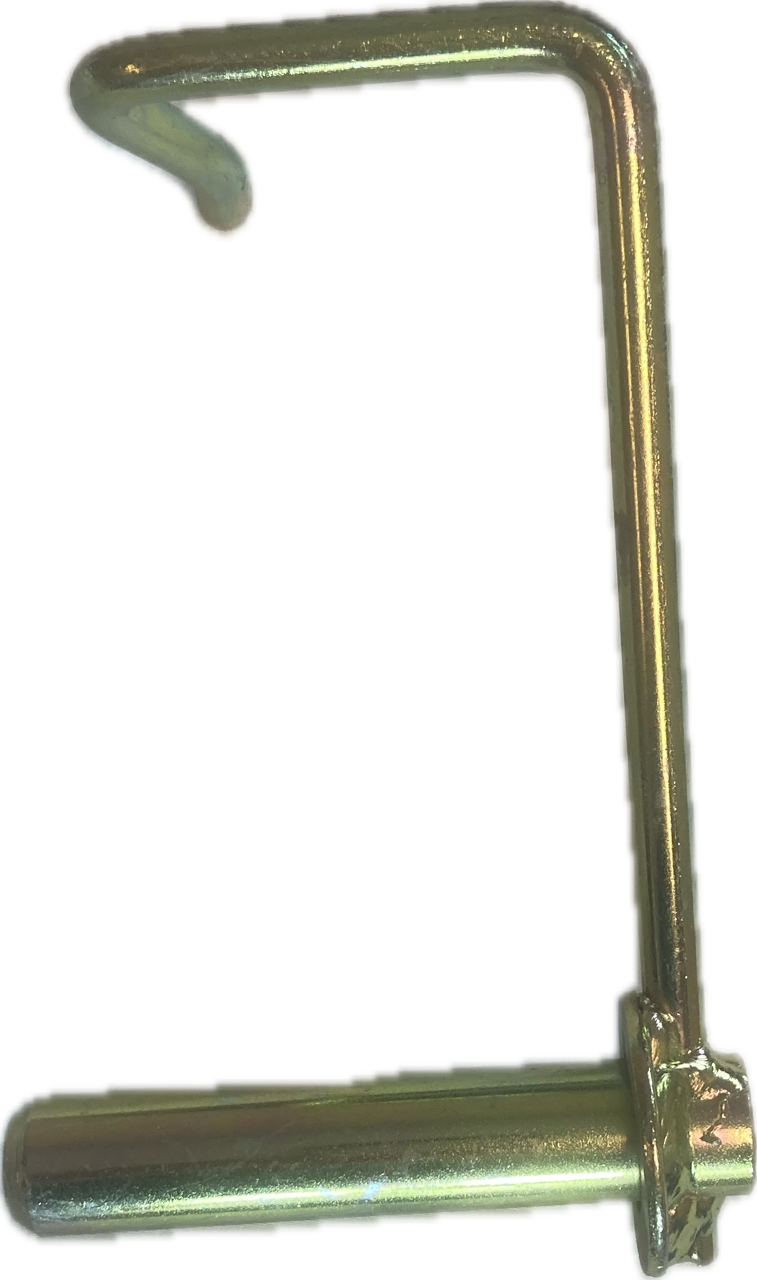

9		1	1037	Kick Pin	Standard
10		2	1047FFRB	Wheel Assy	Standard
11		2	1014	Bolt, Axle	Standard
12		6	1025	Washer, Axle	Standard
13		2	1044	Spanner, Wheel	Standard
14		2	1041	Nut, Axle, Locking	Standard
16		3	1032	Grease Fitting	Standard
17		1	1026	Linch Pin	Standard
18*1		4	1418	Bolt, Mounting	Standard
19*		4	1419	Nut, Flange Mounting	Standard
20**2		2	1017RB	Bearing HD	Standard
21**		4	11039	Bushing, Bearing Retainer	Standard
22		1		Kit, Bolt, Mounting	Standard
23		1	7978D	Label, Pro Sulky	Standard
24		1	1017RBK	Kit, Roller Bearing, PS1	Not Shown
*		1	1020	Kit, Mounting Bolt	Option
**		2	1017RBK	Kit, Bearing	Option
Not Shown		1	1011	Kit, Hang Up	Standard

1. * Items 18 & 19 are sold as Kit 1020 Mount Hardware, contains (4) bolts and (4) nuts. ↩︎
2. ** Items 20 & 21 are sold as Kit 1017RBK, Wheel Bearing Kit, each contains (1) roller bearing and (2) bushings, one kit required for each wheel assembly. ↩︎
