PS2 Spring Platform Components
Part Breakdown
Save the knees…

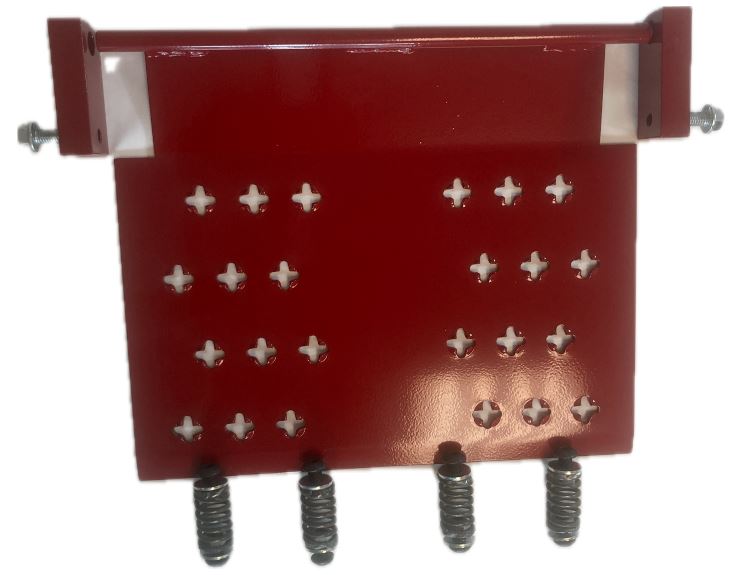

This item is backward compatible with all previously produced PS2003 sulkies. Attaching the platform requires two holes to be drilled into the deck pan assembly. Up to (4) springs can be attached through up to (4) anti-slip cutouts in the new top plate and up to (4) anti-slip cutouts in the deck pan. The number of springs used are determined by operator’s weight and comfort desired.


Parts List
| Locator | Item Picture | Quantity | Part Number | Description | Standard/ Option |
|---|---|---|---|---|---|
| 1A | 1 | 12831R | Foot Pan Assy, Red | Standard | |
| 1B | 1 | 12831B | Foot Pan Assy, Black | Standard | |

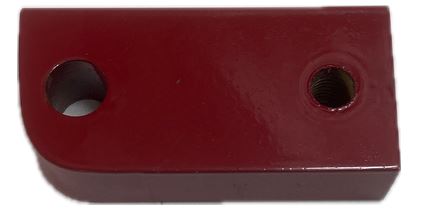

| 2A | 2 | 12833R | Block Assy. Red | Standard | |
| 2B | 2 | 12833B | Block Assy, Black | Standard | |
| 3 | 2 | 12267 | Bolt, Flange, 3/8-16×1, Serrated | Standard | |

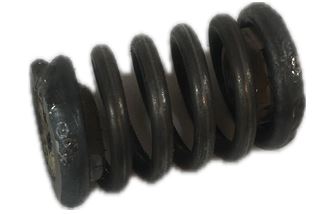

| 4 | 4 | 12788 | Spring | Standard | |
| 5 | 8 | 12806 | Bolt, 3/8-16×5/8, Socket Cap Screw | Standard | |
| 6 | 8 | 11366 | Washer, 5/16 USS | Standard | |

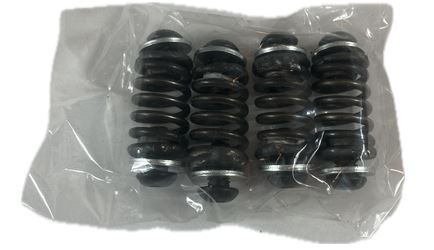

| * | 11 | 12834 | Kit, Spring Replacement | Option |
- * Item is a spring replacement kit with (4) springs. ↩︎
